Pneumatic rotary joints and custom air rotary unions for automation rotary tables, packaging machinery, laser cutting, CNC fixtures, bottle capping, robot tooling, pneumatic tools, vacuum packaging, welding positioners, textile printing, electronics fixtures, and dusty industrial equipment.
Begapunk helps machine builders, OEM engineers, and distributors select air rotary unions based on passage count, pressure, RPM, mounting method, air quality, and installation environment.
Instead of choosing only by model number, engineers can start from the machine function: clamping, unclamping, blow-off, vacuum, indexing, rotating fixture supply, or protected pneumatic transfer in dusty environments.
Start from your machine type, then match the passage count, mounting method, and protection level.
Rotary indexing tables in automation lines need continuous air supply to pneumatic clamps, vacuum ejectors, and blow-off nozzles while rotating 360°. A failed rotary joint stops the entire indexing cycle and scrapes the production batch.
Typical requirement: 2–4 independent air passages at 0.3–0.6 MPa, 60–120 RPM indexing speed, with flange mount for anti-rotation stability. Multi-channel layouts prevent cross-contamination between clamp and vacuum circuits.
View ApplicationRotary packaging machines — pouch fillers, form-fill-seal lines, and rotary sealers — need compact air transfer in tight machine envelopes. Space is limited, but downtime is expensive: a single failed seal can contaminate a full batch of food or pharmaceutical product.
Typical requirement: 1–3 passages at 0.4–0.8 MPa, compact threaded mount for tight turret envelopes, with quick-disconnect fittings for fast maintenance changeout. Stainless steel body options available for washdown environments.

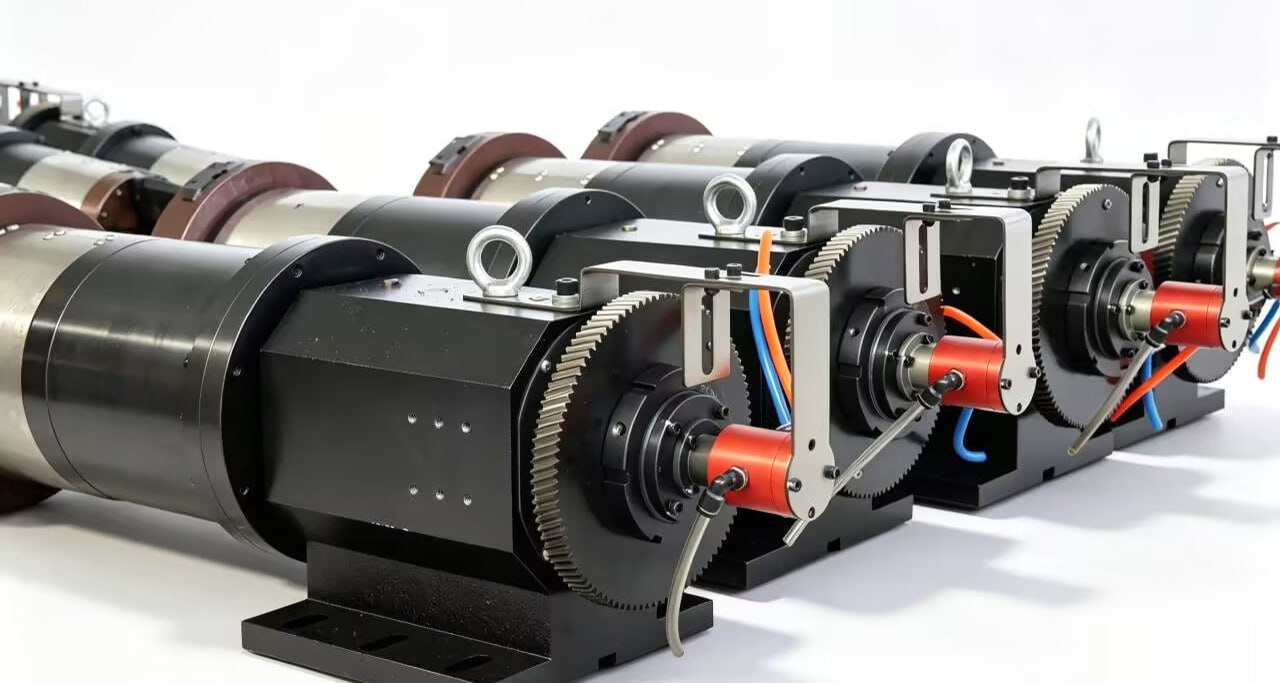

View ApplicationLaser tube cutting heads rotate continuously while feeding assist gas (oxygen, nitrogen, or compressed air) and controlling pneumatic clamps. A leak in the assist gas line destroys cut quality; a clamp failure drops the workpiece into the machine.
Typical requirement: 2–4 passages at 0.4–1.0 MPa assist gas pressure, 100–500 RPM continuous rotation, with clean flow paths to prevent gas contamination. Flange mount preferred for high-vibration cutting heads.
View ApplicationCNC rotary tables and 4th-axis fixtures rely on stable pneumatic clamping pressure to hold workpieces during machining. Pressure drop during rotation causes clamp release — and a destroyed workpiece or broken tool. Repeatable clamping force is non-negotiable.
Typical requirement: 2–3 passages at 0.3–0.6 MPa, flange mount for rigid fixture integration, with through-bore options for coolant or wiring passage. Derate pressure 30% for continuous-duty clamping cycles.

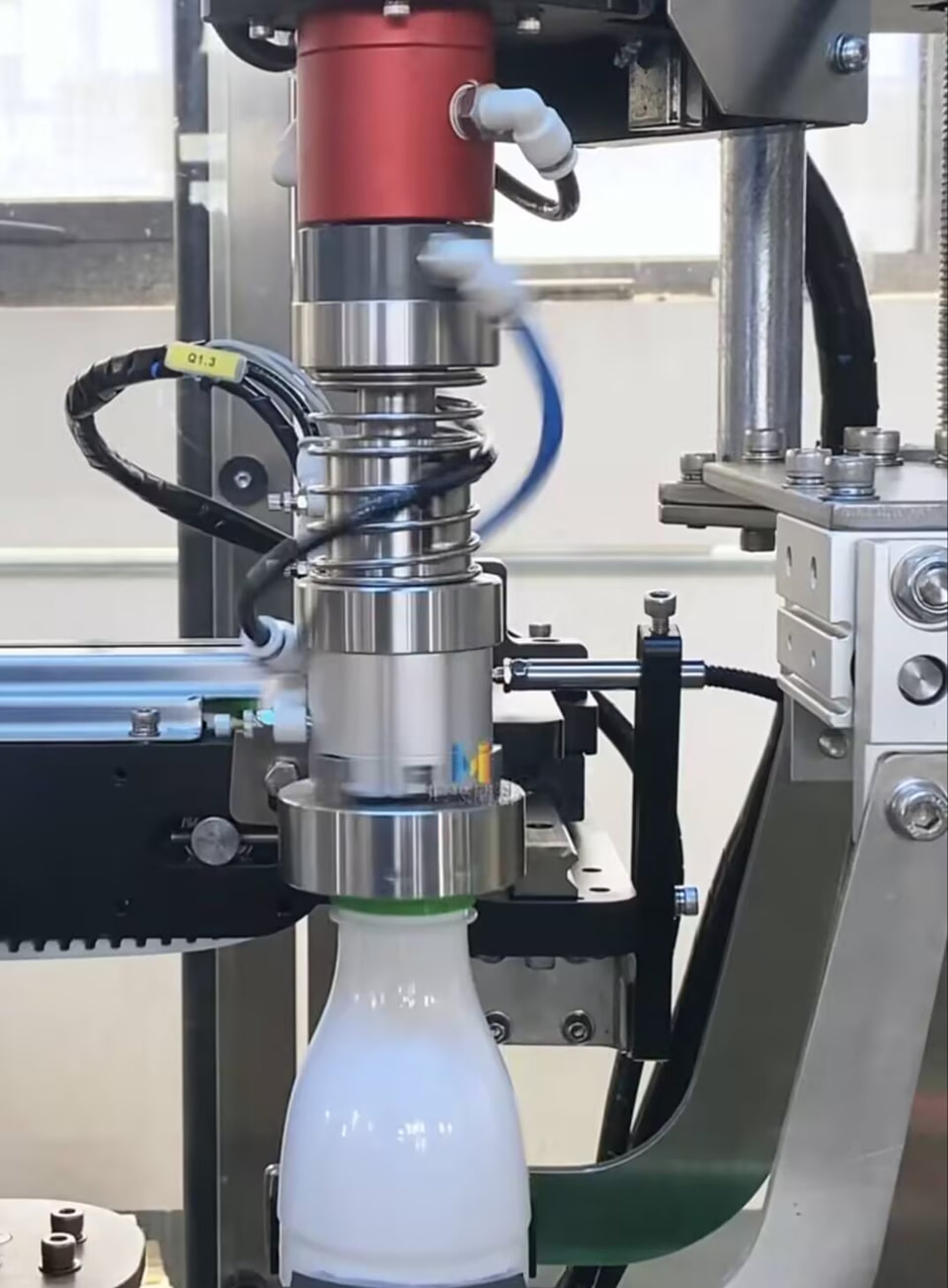

View ApplicationRotary filling turrets and capping heads in beverage and pharmaceutical lines rotate at 60–200 RPM while controlling pneumatic torque, vacuum hold-down, and bottle gripper actuation. A leak at the rotary joint causes inconsistent fill levels or loose caps — both are rejected product.
Typical requirement: 1–3 passages at 0.2–0.5 MPa, compact threaded mount for tight turret envelopes, with FDA-compatible seal options for food-grade applications. Stainless steel 316 body available for washdown compliance.
View ApplicationRobot grippers, suction cups, and rotating wrists need air and vacuum transfer through a compact rotary joint at the end of the arm. Weight and size are critical — every gram at the EOAT reduces payload capacity. A failed joint means dropped parts and production line stops.
Typical requirement: 2–3 passages at 0.3–0.6 MPa, ultra-compact threaded mount (often M5 or G1/8), lightweight AL6061 body, with integrated electrical slip ring options for combined pneumatic-electric EOAT designs.
View ApplicationHandheld pneumatic tools — tightening guns, grinders, sanders — twist the air hose with every rotation. Without a swivel, the hose kinks, restricts airflow, and fatigues at the fitting. A compact air swivel at the tool inlet eliminates hose twist and extends hose life by 3–5×.
Typical requirement: Single passage at 0.4–0.8 MPa, threaded mount (G1/4 or G1/8), compact body for handheld tool integration, with 360° free rotation and low torque drag so the operator does not feel resistance.
View ApplicationRotary vacuum packaging turrets need simultaneous vacuum extraction and release air on independent channels. Cross-contamination between vacuum and compressed air destroys package seal integrity. Each channel should be specified with an application-appropriate isolation and allowable cross-port leakage criterion. Confirm the channel-isolation test conditions and acceptance limits for the selected model.
Typical requirement: 2–3 passages (vacuum + release air + clamp), 0.05–0.1 MPa vacuum side / 0.4–0.6 MPa air side, 60–120 RPM turret speed, with flange mount for rigid turret integration and food-grade seal options.
View ApplicationRotary welding tables and pipe rotators operate in harsh environments: weld spatter, grinding dust, and high vibration. Standard rotary joints fail within weeks from dust ingress and side-load damage. Protected designs with sealed bearings and dust shields are essential.
Typical requirement: 2–4 passages at 0.4–0.8 MPa, 5–60 RPM slow rotation, flange mount with IP65 dust protection, 45# steel or 304 SS body for weld spatter resistance, with heavy-duty anti-rotation bracket for vibration isolation.
View ApplicationRotating rollers, winding shafts, and printing drums need air blow-off, vacuum web handling, and sometimes coolant or water transfer. Paper dust and textile fibers are abrasive contaminants that score standard seals. Filtration and seal material selection are critical for 24/7 converting lines.
Typical requirement: 1–2 passages at 0.2–0.5 MPa, 100–500 RPM continuous rotation, through-bore for shaft passage, with 10-micron filtration and PTFE seals for fiber resistance. Water-compatible stainless steel body for coolant applications.
View ApplicationRotating test fixtures for batteries, PCBs, and semiconductor components need precise pneumatic clamping and vacuum holding during inspection. ESD-sensitive environments require clean, dry air with no oil contamination. Compact size is critical — test fixtures often have <50 mm clearance around the rotation axis.
Typical requirement: 2–3 passages at 0.1–0.4 MPa, 60–300 RPM, ultra-compact threaded mount (M5 or G1/8), with oil-free PTFE seals and optional integrated electrical circuits for signal transfer alongside pneumatic lines.
View ApplicationSteel mills, foundries, cement plants, and mining equipment expose rotary joints to abrasive dust, metal chips, and extreme vibration. Standard joints fail within 2–3 months from dust ingress into bearings and seal faces. IP65-rated dust-proof designs with labyrinth seals and protective boots are mandatory.
Typical requirement: 2–4 passages at 0.4–1.0 MPa, 10–100 RPM, flange mount with IP65 dust protection, 45# steel or 304 SS body for impact resistance, with sealed bearings and external dust shields. 25-micron filtration minimum; 10-micron recommended.
View ApplicationThe best model depends on machine function, installation constraints, and operating conditions.
| Application Type | Common Requirements | Suggested Product Family |
|---|---|---|
| Automation rotary tables | Multiple air channels, low leakage, compact mounting. | 2P, 3P, 4P, 8P, custom multi-passage. |
| Packaging and vacuum packaging | Compact size, fast replacement, stable air and vacuum transfer. | 1P, 2P, 3P, custom air/vacuum layouts. |
| Laser cutting machines | Assist gas, cooling support, clean flow path, custom layout. | Multi-passage and custom pneumatic rotary joints. |
| CNC pneumatic clamping | Stable clamping pressure, flange mounting, fixture integration. | 2P, 3P, 4P, through-bore options. |
| Robot EOAT and pneumatic tools | Hose anti-twist, compact installation, vacuum or gripper air transfer. | BP-1P, BP-2P, BP-3P, custom compact layouts. |
| Welding, textile, electronics fixtures | Multiple pneumatic circuits, protected routing, fixture-specific mounting. | 3P, 4P, 8P, custom review. |
| Dusty industrial equipment | Dust protection, rugged sealing, harsh operating environment. | Dust-proof rotary unions and custom protected designs. |
For OEM machinery and special equipment, Begapunk can support custom passage layout, mounting dimensions, thread type, body material, and 2D/3D drawing review.
